Fixing Overflow

2024-02-02

I noticed that code blocks were overflowing at narrower screen sizes. Let's debug that.

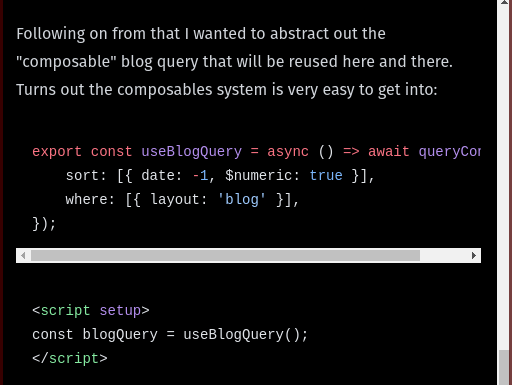

Checking out a previous post containing code blocks on my phone I realised there was a lot of overflow happening. Let's fix that.

Let's get stuck into debugging this previous post's layout issues.

Immediate tangent... In writing up the intro above, I learnt several things:

1. Nuxt Content's Vue Components have to be placed in the components/content directory if they're not global components. I assumed that <NuxtLink /> would be a global component... But apparently not. I suppose this comes down to the whole auto-import stuff that happens behind the scenes not happening for this sort of parsed / generated markup.
2. Once again I've run into something completely undocumented... If you use the inline component{https://content.nuxt.com/usage/markdown#vue-components} markup and you want to pass something into the component slot, there is no documentation on how to do that.
   • I discovered through gut feel that the markup is actually this:

     Nice :content-link{to="/"}[example link] mate.


   • We have :content-link which begins inlining components/content/ContentLink.vue. Which is a component I've made to wrap <NuxtLink />.
   • Next we have {to="/"} which passes the props / attributes to the component.
   • Then, crucially we have [example link] which encloses the inline text to be passed to the slot. It took quite a few experiments to find that out.
   • Anything after those brackets is considered regular markup again.

Back to debugging

Ok... Back on topic. What is happening with the code / text overflow.

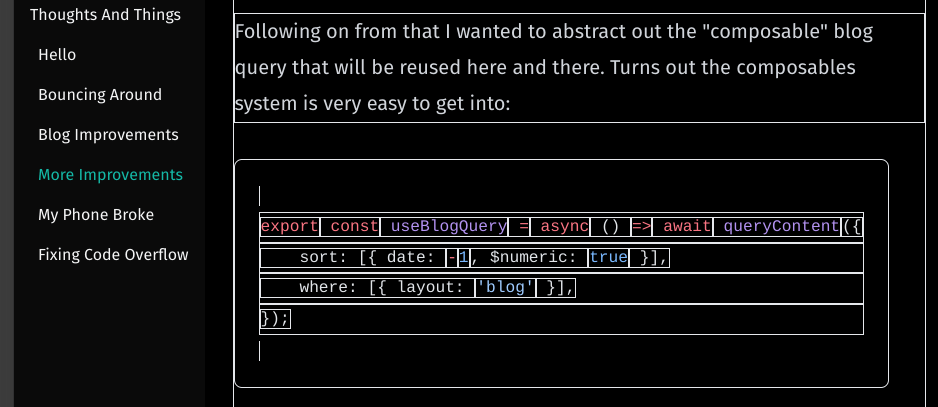

I ran a quick test by adding a white border to all of the article contents and removing everything relating to prose styling. I've also added max-width: fit-content to the pre.shiki tags. We get something that looks like this:

The screenshot shows a point at which the width of the prose content section is approaching the natural width of the longest code block in the article.

As soon as we pass that point, I would expect the prose to continue shrinking, while the code block stays at it's full width... At a certain point, which appears to be the width of that code block it just sticks.

Hold on while I turn off Nuxt Devtools, which has been interfering with the min page width...

... foreshadowing ...

I continued my investigation by nuking as many of the display utilities I'd applied along the way. I'm using a lot of grid, and as you would expect there are some things going on with how widths are handled + cascade up the dom from wider elements within.

This all sparked a memory of something I saw recently about adding min-width: 0 globally to everything as part of your CSS reset. And sure enough, simply throwing that on my prose wrapper solves the issue!

Success.

Alright, more progress on styling code blocks!

I cannibalised the ProseCode file from nuxt-themes/typography. I didn't want to deal with using the CSS in JS looking syntax they have for their styles, so I tried getting CoPilot to rewrite it into plain CSS with CSS variables and nesting. The outcome was predictably not that great, but gave me a decent starting point to work from, so I guess it still saved me time.

Next I added some custom styles to move the filename field out of the way a little, added line numbers, and an improved highlighting system:

{
  "hello": "beep",
  "hello": "beep",
  "hello": "beep",
  "hello": "beep",
  "hello": "beep",
  "hello": "beep",
  "hello": "beep",
  "hello": "beep",
  "hello": "beep",
  "hello": "beep",
  "hello": "beep",
}

Specifically, I added code to conditionally add more space at the start of each line to account for longer line numbers:

.prose-code {
  --prose-code-line-numbers: 1em;

  :deep(.line) {
    position: relative;
    margin-inline-start: calc(.5em + var(--prose-code-line-numbers));

    &::before {
      content: attr(line);
      position: absolute;
      left: calc(-1 * var(--prose-code-line-numbers) - 0.5em);
      opacity: 0.5;
    }

    &:nth-last-child(n+10),
    &:nth-last-child(n+10)~.line {
      --prose-code-line-numbers: 2em;
    }

    &:nth-last-child(n+100),
    &:nth-last-child(n+100)~.line {
      --prose-code-line-numbers: 3em;
    }

    &:nth-last-child(n+1000),
    &:nth-last-child(n+1000)~.line {
      --prose-code-line-numbers: 4em;
    }

    &.highlight {
      background-color: var(--prose-code-block-border-color);

      &::before {
        opacity: 1;
      }
    }
  }
}

There's some interesting things going on here:

1. :deep in the context of scoped component styles allows those styles to affect child components.
2. content: attr(line) grabs the line's line="4" attribute to use as the ::before content.
3. Line numbers are absolutely positioned to take them out of the content flow / to avoid messing with whitespace. We need to know how much whitespace to add, based on the length of the largest line number.
   • To dynamically update the line number width / offser based on the number of lines we use quantity selection.

Trying to understand quantity selection

Ok... So how does nth-child work?

MDN helps a bit to get started understanding things. It explains that the selector takes groups of sibling elements and matches them based on their position in those matched lists.

That sounds reasonable... But what does the n actually do?

I got to grips with this by actually evaluating what n would be if you replaced it with integers starting at 0. So for the example :nth-child(n+10):

• n = 0 = (10) -> Styles 10th element
• n = 1 = (11) -> Styles 11th element
• n = ... = n + 10 -> Styles ... elements
• n = 15 = (25) -> Styles 21st element

This is cool. If you wanted to you could style every element after a specific point in a list of elements. However, we want to be able to style the whole list based on how many elements there are. Enter :nth-last-child...

This works in the exact same way but the evaluated index is checked from the end of the list towards the start. So given :nth-last-child(n+5) will match 0+5=5, 1+5=6, ... etc starting from the end of the list:

That example, predictably, selects all the items with a reversed index of 5 and above. Conversely if the list had only 4 elements, then no elements would be matched, there would be no highlights in the list.

This is good, but how do you select the whole list once any of the items are selected? You need only use the ~ subsequent sibling combinator, which will select every following matched element.

If we took the last example and change it to li:nth-last-child(n+5) ~ li, first imagine taking every highlighted item, then pick just their following siblings and highlight those instead:

You'll notice we've highlighted the whole list except for the very top one. That's because we're only matching siblings following our matched nth-last-child. To make the highlight inclusive you just add the first example to this second example:

:nth-last-child(n+5),
:nth-last-child(n+5) ~ li {
  @apply border;
}

Here's the result:

You'll see if you remove one item from the list above so there's only 5 items, every element gets the border removed.

That's a quantity selection baybee!

So... Now that I've explained that at great length we can understand it's application in giving more or less space to the line numbers in our markdown code renderer styles!

.prose-code {
  /* When you have 1-9 lines, line numbers will only be 1 character wide. */
  --prose-code-line-numbers: 1em;

  :deep(.line) {
    /* Adds a margin slightly wider than we allocate to line numbers */
    margin-inline-start: calc(.5em + var(--prose-code-line-numbers));

    &::before {
      /* Shift the line number into the margin set up above */
      left: calc(-1 * var(--prose-code-line-numbers) - 0.5em);
    }

    /* When you have 10 lines, that's going to be 2 characters wide */
    &:nth-last-child(n+10),
    &:nth-last-child(n+10)~.line {
      --prose-code-line-numbers: 2em;
    }

    /* When you have 100 lines, that's going to be 2 characters wide */
    &:nth-last-child(n+100),
    &:nth-last-child(n+100)~.line {
      --prose-code-line-numbers: 3em;
    }

    /* When you have 1000 lines, that's going to be 3 characters wide */
    &:nth-last-child(n+1000),
    &:nth-last-child(n+1000)~.line {
      --prose-code-line-numbers: 4em;
    }

    /* If I'm posting > 9999 lines of code then something has gone extremely wrong... */
  }
}

Looking at the code above, I'm suddenly wondering if I should actually be using ch units... Since I'm working with literal character widths... Well, that's something to look into on Monday if I get the chance.
